Falls Filtration

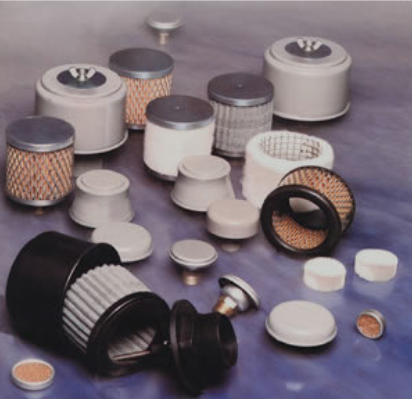

Breather Filters
The most complete line of Breather Filters in stock. Weather hooded, low profile and high capacity models available. Connection sizes from 1/8" to 2" MPT. Flow rates from 1 CFM to 80 CFM. Choice of media for long life, low restriction and high efficiency. Disposable, cleanable or replaceable element models.

Panel Filters
Permanent, Cleanable, High Velocity Special types, sizes and materials made to specifications. Standard sizes available. Oil watted or dry type furnished. Wide selection of efficiencies, dirt holding capacities and resistances meet varied applications. Construction consist ofaluminum, galvanized or stainless steel channels, utilizing wire, pleated paper or flocked screen cloth medias.

Unimaze
Small filters and filter silencers for direct engine intakes to maximum 450 cfm. Simplified construction consists of four components, element (wire mesh, synthetic or paper media), base, top or optional weather hood or base tray or body assembly. Nine standard MPT sizes available from 3/4" to 4".

Multimaze
Rugged, heavy duty wire mesh or paper media filter. Capacities from 400 to 6000 cfm. Provides good efficiency and large dirt holding capacity. Available with filter silencer and various sizes and mounting arrangements available. Multimaze filters are available with male or female pipe thread connections (3" to 12"), set scre type mountings (3" to 24"), or studs to match 125lb. American Standard flange (3" to 22")
Stoddard Silencers

F64 Filter Silencer
The Series F64 Air Intake Filter and Filter Silencer isdesigned to mount directly on the inlet of an engine, blower or compressor. It will provide 16dB to 20dB noise reduc-tion and the paper filter media has an efficiency of 99% on1 micron particles. Sizes range from 1"NPT to 14" 125lb. American Standard flanges.

F72 Filter Silencer
The Series F72 Air Intake Filter and Filter Silencer is designed to mount directly on the inlet of an engine, blower or compressor. It will provide 16dB to 20dB noise reduction. The Polyurethane filter media has an efficiency of 98% on 10 micron particles and a stainless steel center core. Sizes range from 1"NPT to 14" 125lb. American Standard flanges.

F65 Inline Filter Silencer
The Series F65 Inline Air Filter is designed to mount directly in the air piping system for engines, blowers or compressors. The filter element, which is fabricated from pleated paper media, has an efficiency of 99% on 1 micron particles and larger. The housing is designed to withstand an internal pressure of 15 psig. Pressure taps are provided on the intake and discharge nozzles for installation of a pressure drop indicator or switch by the customer. The F65 Inline Air Filter surfaces are prime coated with a red oxide primer. Sizes range from 1"NPT to 14" 125lb. American Standard flanges.

Panel Filter Silencers
Stoddard Silencers panel filters are designed for the airflow required of larger blower, compressors and centrifugal fans. The option for numerous filtration systems allows the engineer to specify, and the OEM to design, a filter that meets their exact requirement.
From the coarse filtration of the F3 element available on the F21 and F22 to the three stage filtration available on the F41 and F42 many options exist to protect the compressor, blower or fan against the effects of grit and dirt on the machinery’s internals.
Flanges are drilled to match 125lb American Standard flanges.
