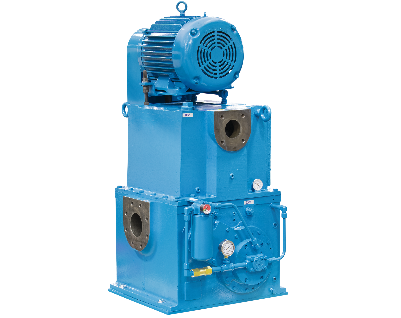

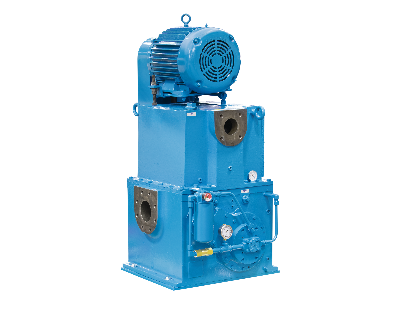

Kinney KT Single Stage Rotary Piston Vacuum Pumps

Ultimate pressure: 0.010 Torr
Pumping speed 60 Hz: 150-778 ACFM

KT pumps are quiet running vacuum pumps with high pumping capacity at both high and low pressures. The triplex piston design is inherently dynamically balancedand is practically vibration-free. Even in dirty applications, the KT enjoys unequalled durability, as there is no metal-to-metal contact between the pump piston and the cylinder; clearances are filled with oil.

All KT models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled; however, optional air-cooling systems are available on several sizes. Adjustable gas ballast valves are included as standard equipment for handling water and other vapor loads.

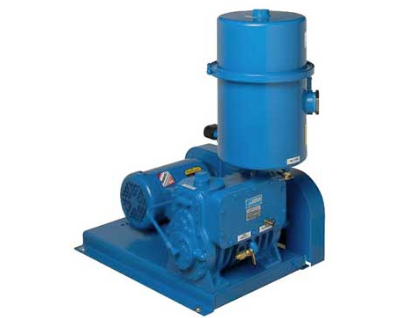

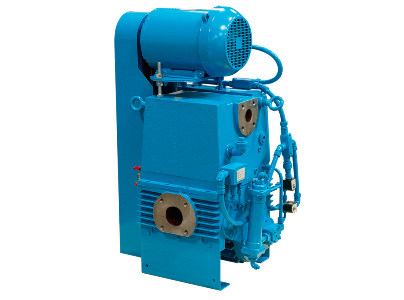

KC and KTC Two Stage Rotary Piston Vacuum Pumps

Ultimate pressure: 0.2 Microns
Pumping speed 60 Hz: 5-107 ACFM

KC and KTC rotary piston vacuum pumps achieve the lowest possible pressures from mechanical pumps and are recommended for applications where the operating pressure is below 0.1 Torr (0.13 mbar).

As there is no metal-to-metal contact from the clearances being filled with oil, these two-stage pumps are extremely rugged and reliable. KC and KTC pumps are air-cooled with the exception of the KTC-112, which is water-cooled (optional air-cooled systems are available). Adjustable gas ballast valves are included as standard equipment for handling water and other vapor loads.

The triplex piston design incorporated into the KTC pumps is inherently dynamically balanced and is practically vibration-free.

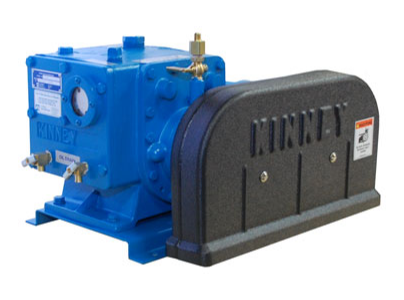

Kinney KD & KDH Single Stage Duplex Rotary Vacuum Pumps

Ultimate pressure: 0.010 Torr
Pumping speed: 33-165 ACFM

KD and KDH vacuum pumps are belt-driven, low-speed rotary piston pumps. These pumps enjoy unparalleled ruggedness and reliability; some have been in system operation for over 70 years. This reliability is due to no metal-to-metal contact from the clearances being filled with oil. Gas ballast and their large oil capacity enable the KD and KDH models to handle moderate water or other vapor loads.

KD models are air cooled. KDH models are water cooled.
Rotary Piston Vacuum Pumps
